nmc::msg_builder_t Class Reference

#include <nmc_msg_builder.H>

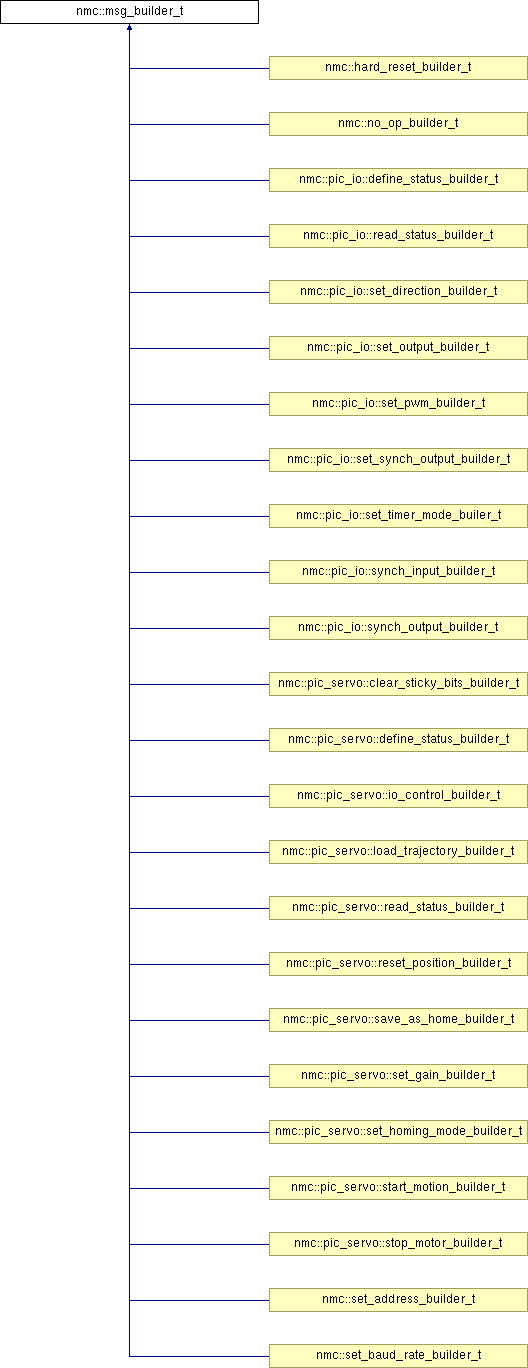

Inheritance diagram for nmc::msg_builder_t:

List of all members.

Public Member Functions
	msg_builder_t ()
virtual	~msg_builder_t ()
unsigned	build (u8_t address, u8_t *data, unsigned max_size)
Static Public Attributes
static unsigned const	MAX_MSG_SIZE = 20
Protected Member Functions
template<typename T >
void	encode (T const &v)
void	encode (void *data, unsigned size)
virtual u8_t	_build (void)=0
Static Protected Member Functions
static u8_t	calc_crc (u8_t const *data, unsigned size)
Protected Attributes
unsigned	m_offset
u8_t *	m_data
unsigned	m_max_size
Static Protected Attributes
static unsigned const	ENVELOPE_SIZE = 4
static unsigned const	HEADER_SIZE = 3
static unsigned const	FOOTER_SIZE = 1
static unsigned const	ADDRESS_OFFSET = 1
static unsigned const	COMMAND_OFFSET = 2
static u8_t const	STX = 0xAA

---

Constructor & Destructor Documentation

msg_builder_t::msg_builder_t

(

)

virtual nmc::msg_builder_t::~msg_builder_t

(

)

[inline, virtual]

---

Member Function Documentation

virtual u8_t nmc::msg_builder_t::_build

(

void

)

[protected, pure virtual]

Implemented in nmc::set_address_builder_t, nmc::set_baud_rate_builder_t, nmc::no_op_builder_t, nmc::hard_reset_builder_t, nmc::pic_io::set_direction_builder_t, nmc::pic_io::define_status_builder_t, nmc::pic_io::read_status_builder_t, nmc::pic_io::set_pwm_builder_t, nmc::pic_io::synch_output_builder_t, nmc::pic_io::set_output_builder_t, nmc::pic_io::set_synch_output_builder_t, nmc::pic_io::set_timer_mode_builer_t, nmc::pic_io::synch_input_builder_t, nmc::pic_servo::reset_position_builder_t, nmc::pic_servo::define_status_builder_t, nmc::pic_servo::read_status_builder_t, nmc::pic_servo::load_trajectory_builder_t, nmc::pic_servo::start_motion_builder_t, nmc::pic_servo::set_gain_builder_t, nmc::pic_servo::stop_motor_builder_t, nmc::pic_servo::io_control_builder_t, nmc::pic_servo::set_homing_mode_builder_t, nmc::pic_servo::clear_sticky_bits_builder_t, and nmc::pic_servo::save_as_home_builder_t.

Referenced by build().

unsigned msg_builder_t::build	(	u8_t	address,
		u8_t *	data,
		unsigned	max_size
	)

References _build(), ADDRESS_OFFSET, calc_crc(), COMMAND_OFFSET, ENVELOPE_SIZE, HEADER_SIZE, m_data, m_max_size, m_offset, and STX.

Referenced by main().

u8_t msg_builder_t::calc_crc	(	u8_t const *	data,
		unsigned	size
	)			[static, protected]

References COMMAND_OFFSET, and HEADER_SIZE.

Referenced by build().

void nmc::msg_builder_t::encode	(	void *	data,
		unsigned	size
	)			[inline, protected]

References m_data, m_max_size, and m_offset.

template<typename T >

void nmc::msg_builder_t::encode

(

T const &

v

)

[inline, protected]

References endian::htole(), m_data, m_max_size, and m_offset.

Referenced by nmc::pic_servo::set_homing_mode_builder_t::_build(), nmc::pic_servo::io_control_builder_t::_build(), nmc::pic_servo::stop_motor_builder_t::_build(), nmc::pic_servo::set_gain_builder_t::_build(), nmc::pic_servo::load_trajectory_builder_t::_build(), nmc::pic_servo::read_status_builder_t::_build(), nmc::pic_servo::define_status_builder_t::_build(), nmc::pic_io::set_timer_mode_builer_t::_build(), nmc::pic_io::set_synch_output_builder_t::_build(), nmc::pic_io::set_output_builder_t::_build(), nmc::pic_io::set_pwm_builder_t::_build(), nmc::pic_io::read_status_builder_t::_build(), nmc::pic_io::define_status_builder_t::_build(), nmc::pic_io::set_direction_builder_t::_build(), nmc::set_baud_rate_builder_t::_build(), and nmc::set_address_builder_t::_build().

---

Member Data Documentation

unsigned const nmc::msg_builder_t::ADDRESS_OFFSET = 1 [static, protected]

Referenced by build().

unsigned const nmc::msg_builder_t::COMMAND_OFFSET = 2 [static, protected]

Referenced by build(), and calc_crc().

unsigned const nmc::msg_builder_t::ENVELOPE_SIZE = 4 [static, protected]

Referenced by build().

unsigned const nmc::msg_builder_t::FOOTER_SIZE = 1 [static, protected]

unsigned const nmc::msg_builder_t::HEADER_SIZE = 3 [static, protected]

Referenced by nmc::pic_servo::load_trajectory_builder_t::_build(), build(), and calc_crc().

u8_t* nmc::msg_builder_t::m_data [protected]

Referenced by build(), and encode().

unsigned nmc::msg_builder_t::m_max_size [protected]

Referenced by build(), and encode().

unsigned nmc::msg_builder_t::m_offset [protected]

Referenced by nmc::pic_servo::load_trajectory_builder_t::_build(), build(), and encode().

unsigned const nmc::msg_builder_t::MAX_MSG_SIZE = 20 [static]

u8_t const nmc::msg_builder_t::STX = 0xAA [static, protected]

Referenced by build().

---

The documentation for this class was generated from the following files:

• libs/nmc/include/nmc_msg_builder.H
• libs/nmc/library/nmc_msg_builder.C
